Elba

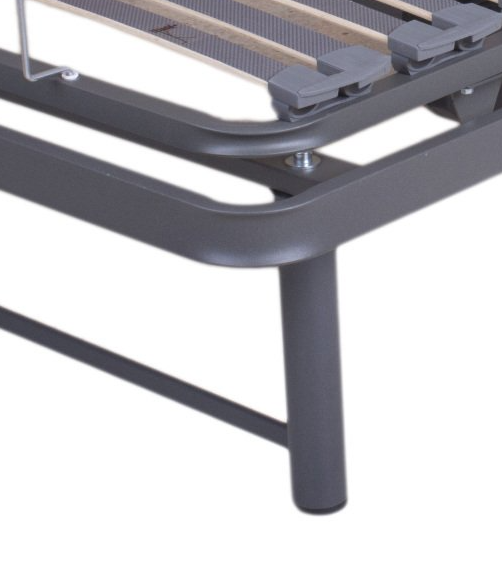

elbe legs
Articulated bed base with four planes and three joints, driven by a 4000 N electronic motor, low voltage (24 volts), with an emergency battery with REST function to reset it to zero in the event of a power failure.
Flexible vaporized wood sheets, suspended on elastic blocks. Steel structure in 50x20x1.5 profiles and bed in 25x25 profiles with a thickness of 1.5mm, finished in oven-dried Epoxy-Polyester. Supports for incorporation and IV poles. Arch supports mattress. Anti-entrapment system between moving parts. Option to adapt headboard and footboard set and side rails. Maximum patient weight 135 kg. Allows the use of a lift. Standard width: 90 cm. (90 mattress). Standard length: 193 cm. (190 mattress). Adjustable beds for people with disabilities. Design S/Norm UNE-EN 60601-2-52:2010.
