Care with lifting trolley
Care with lifting trolley

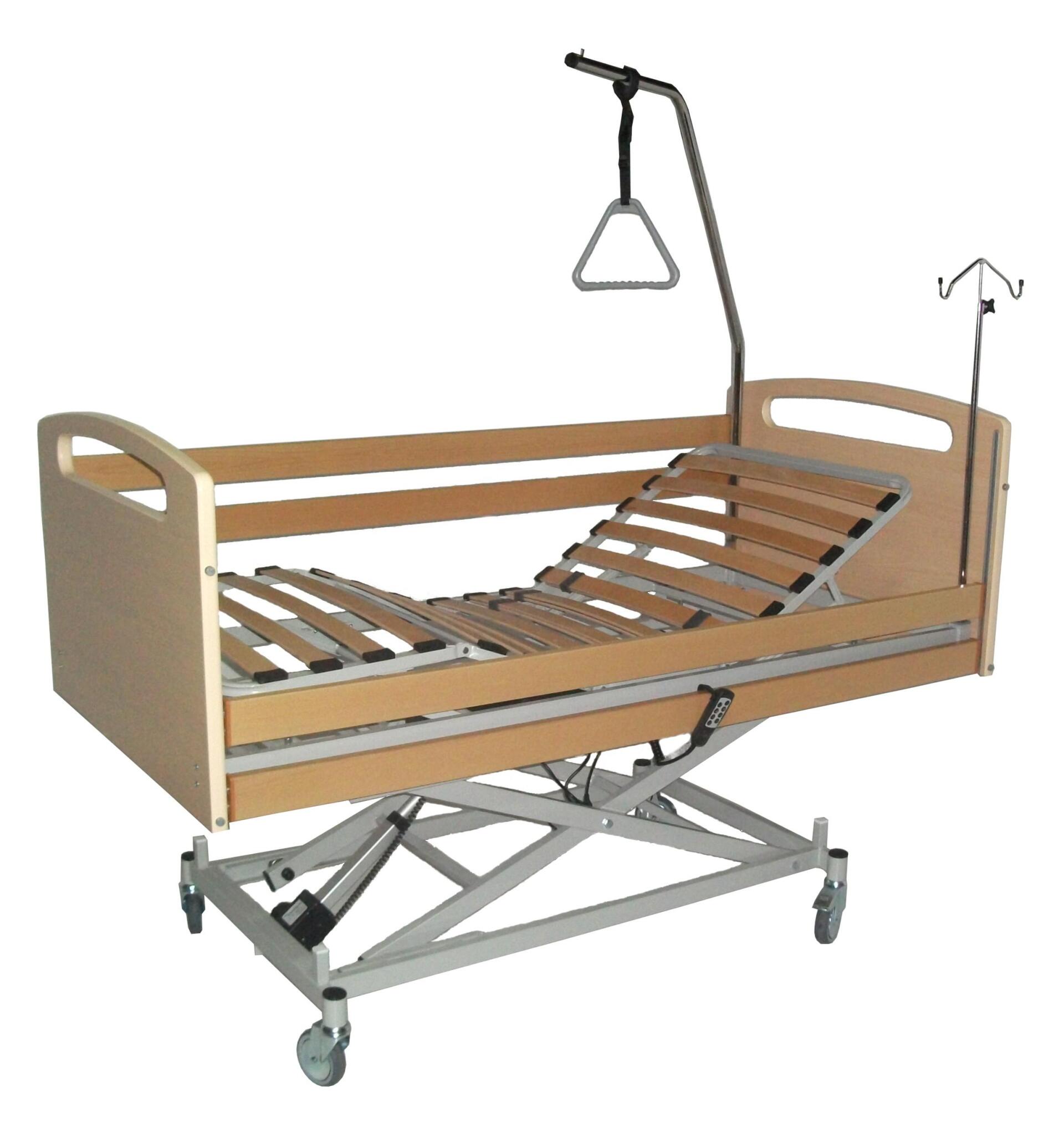

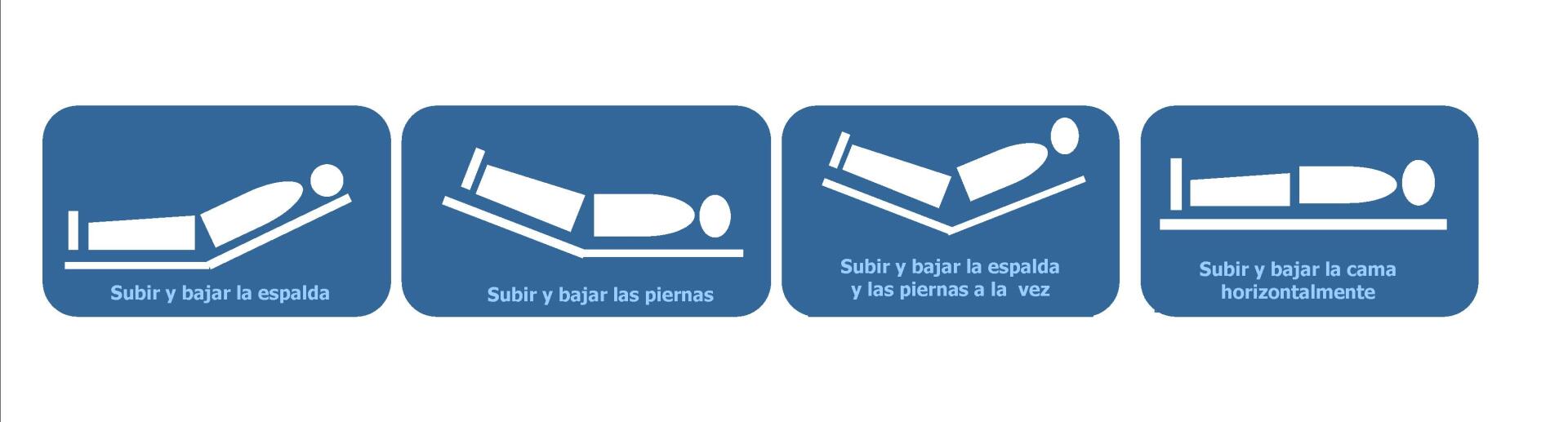

Bed for geriatric use, articulated in four planes and three joints, with elevation system. Electric drive by means of 2 German technology electric motors, low voltage (24 volts), with emergency battery REST function for resetting in case of power failure. Flexible vaporized wood slats, suspended on elastic studs. Scissor lifting system with 50x25 and 30x30 steel profiles, 2mm thick, finished in Polyester, anti-virus powder coating, oven dried. Horizontal elevation from 42 to 84 cm. Duo motor of 4000 N 4000 N. Linear motor of 6000 N. Protection type IPX 4.4 wheels of Ø 100 mm, with anti-thread system, with independent brake. Possibility of simultaneous brake.Polyamide housing for inserter and dripper holder.Arquillo holds mattress.Option to adapt set of headboard and footboard and side rails. Patient weight: 135 kg. Allows the use of a lift. Standard widths: 90 - 105. Standard lengths: 193 cm (mattress 190 cm). Adjustable beds for people with disabilities. Design S/Norm UNE-EN 60601-2-52: 2010.
